For the face first, then the body

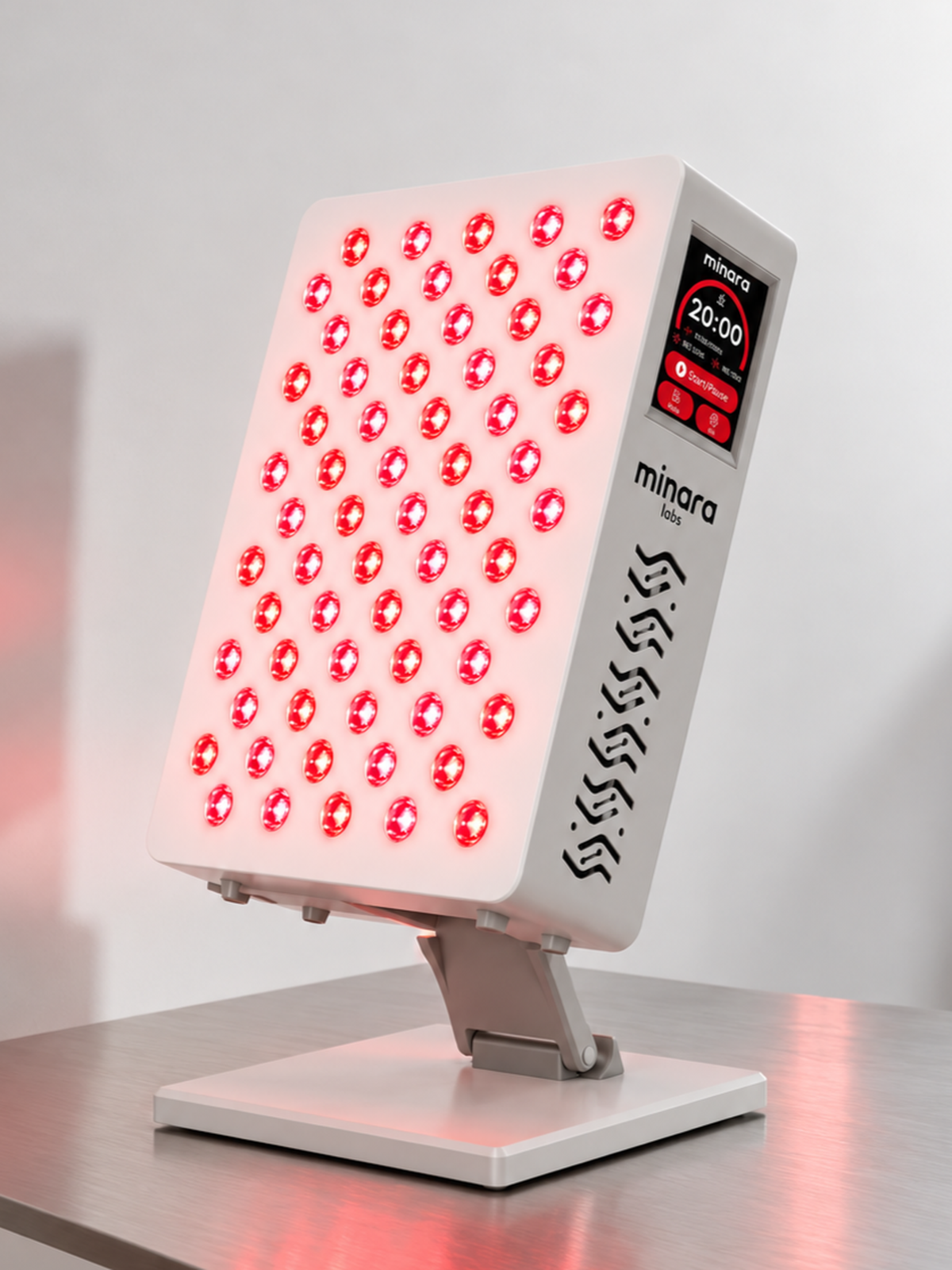

The Panel
Six carefully selected wavelengths across seventy emitters. Made first for the face: collagen, fine lines, texture and radiance. Sized to reach the whole body when you want more.
- Session20 to 30 minutes per zone, at 0 to 12 in
- RoutineFour days a week, minimum
- Wavelengths630 / 660 / 810 / 850 / 940 / 1060 nm
- Rated life50,000+ hours
Designed in Saudi.
For the face
Collagen is madebelow the surface
Fine lines are a structural change, not a surface one. As collagen and elastin production slows, the layer beneath the surface, the dermis, loses density, and the skin above it creases and holds the crease.
Topicals work above that layer. Red light at 630 and 660 nanometres passes into it, and is absorbed by the fibroblasts that produce collagen in the first place. With more energy available to them, they are supported in producing more.
The change is gradual and cumulative, which is the honest version. Most published protocols run several sessions a week over eight to twelve weeks before a difference is clearly visible, and individual results vary.
Beyond the face
One instrument,several routines
The same six wavelengths that reach facial skin are used across the rest of the body. Nothing changes but where the panel is pointed.
Hair and scalp
Red and near-infrared light are used in hair-care routines, where they may support a healthy scalp environment and the appearance of fuller, healthier-looking hair. Direct the same session at the scalp.
Muscle recovery
Near-infrared reaches deeper tissue than visible red, which is why it is commonly used to support muscle relaxation and general comfort after physical activity.
Rest and sleep
It can support a more restful nighttime routine by promoting relaxation and complementing the body's natural sleep-wake rhythm. Used as part of a consistent evening routine, it can create a calm transition toward rest and help support overall sleep quality.
Wavelength selection
Six wavelengths,each with a reason
630nm
Visible red
Surface skin. The band most closely associated with tone, surface texture and collagen activity.
660nm
Visible red
Upper dermis, where fibroblasts sit. The most studied wavelength for skin outcomes.
810nm
Near-infrared
Mid to deep dermis. Invisible to the eye, and central to the recovery literature.
850nm
Near-infrared
Deep dermis. Reaches denser tissue that visible red light does not.
940nm
Near-infrared
Subcutaneous tissue. Extends the delivered spectrum with a gentle thermal effect at depth.
1060nm
Near-infrared
Muscle and deep tissue. The upper boundary of the panel, broadening coverage rather than concentrating it.
Why these wavelengths
How deep eachwavelength reaches
Specifications
Optical
- Wavelengths
- 630, 660, 810, 850, 940, 1060 nm

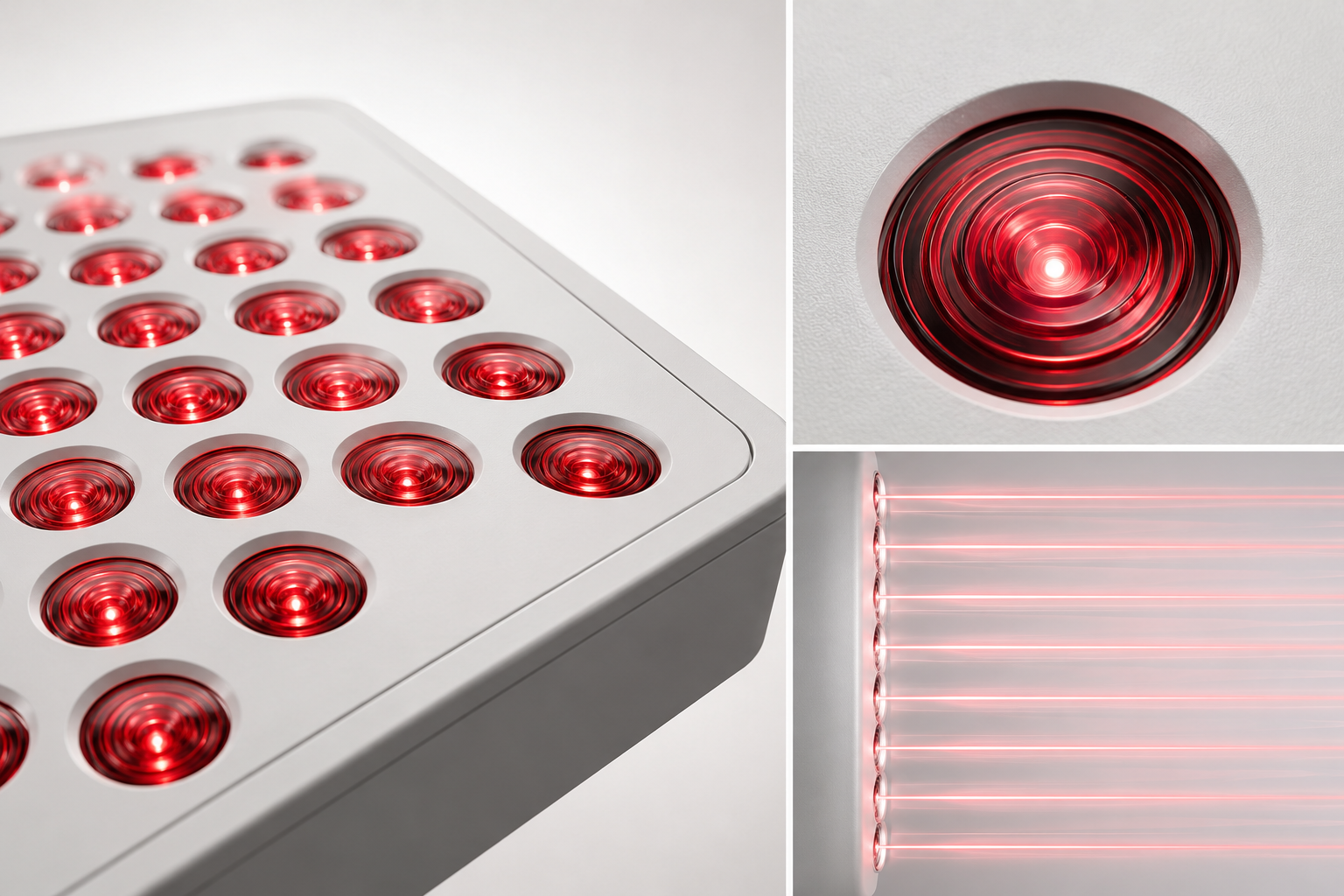

- Emitters
- 70 LEDs
- Lens angle
- 30°
- Irradiance
- 220 mW/cm² ±10% at 0 in
Power
- LED power
- 350 W
- Actual consumption
- 120 W ±10%
- Input
- AC 100 to 240 V, 50/60 Hz
- Rated life
- 50,000+ hours
Physical
- Dimensions
- 318 × 220 × 70 mm
- Weight
- 4.5 kg with packaging
- Housing
- Cold-rolled SPCC steel
- Ingress rating
- IP20
Environment
- Electromagnetic field
- Low, per manufacturer specification
- Operating temperature
- −20 °C to 50 °C
- Relative humidity
- 30% to 70%
- Intended use
- Indoor, dry environments
Compliance
- CE
- European conformity marking
- FCC
- US electromagnetic compliance
- RoHS
- Restriction of hazardous substances
- IEC 60598-1
- Luminaires: general requirements and tests
- IEC 60598-2-4
- Portable general purpose luminaires
- FDA
- Establishment registration and device listing
Certification
- European conformity. Tested against EU health, safety and environmental requirements.
- US electromagnetic compliance, for emissions and interference.
- Restriction of hazardous substances in electrical equipment.
- Built and tested to IEC 60598-1 and IEC 60598-2-4, the international luminaire safety standards.
The panel is also FDA registered, meaning the manufacturing establishment is registered and the device is listed. Registration is a listing requirement, not an FDA approval or endorsement.

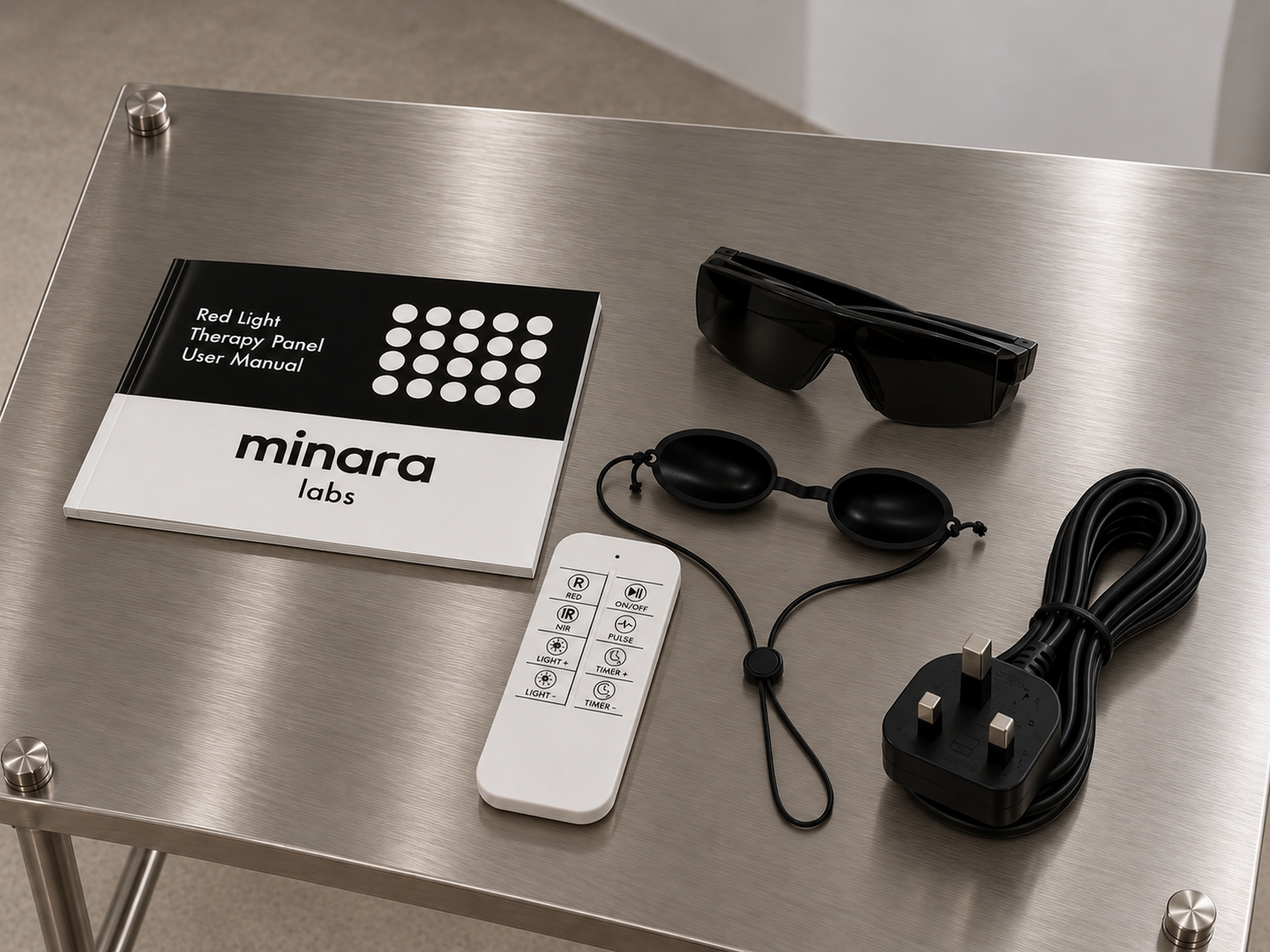

In the box
Everything you need,from the first session

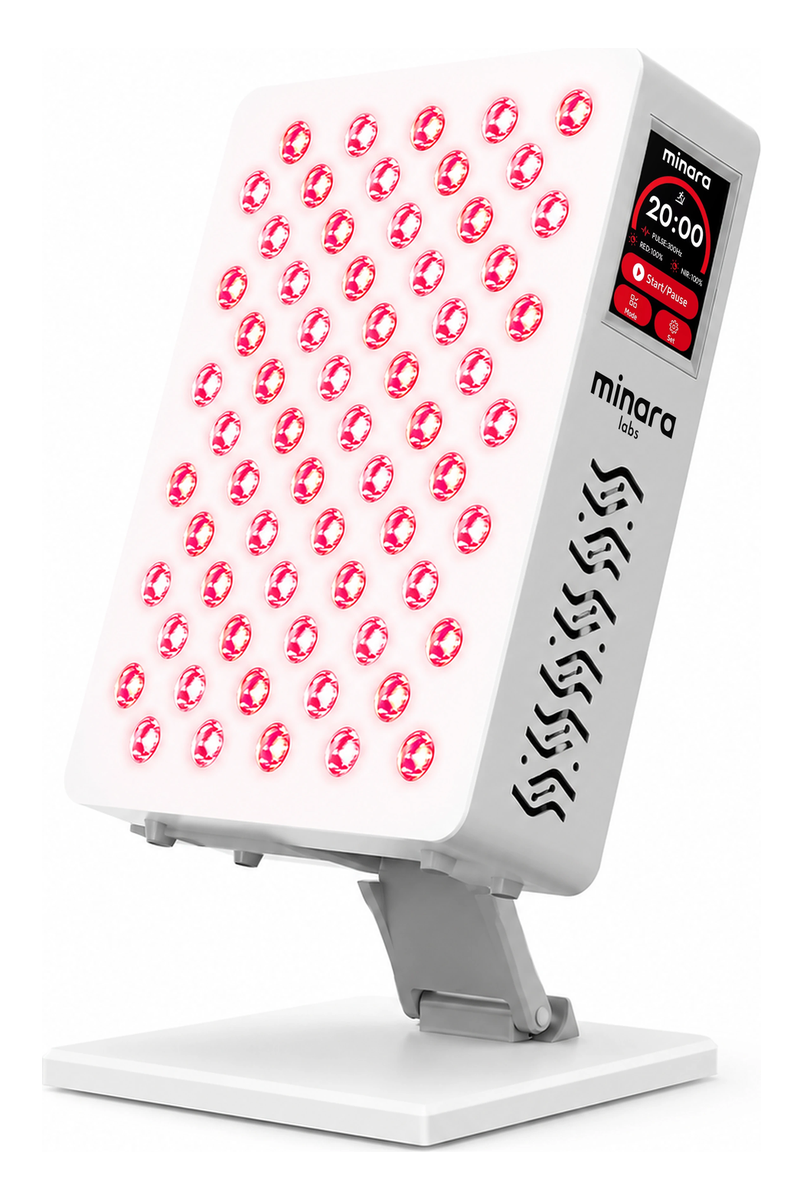

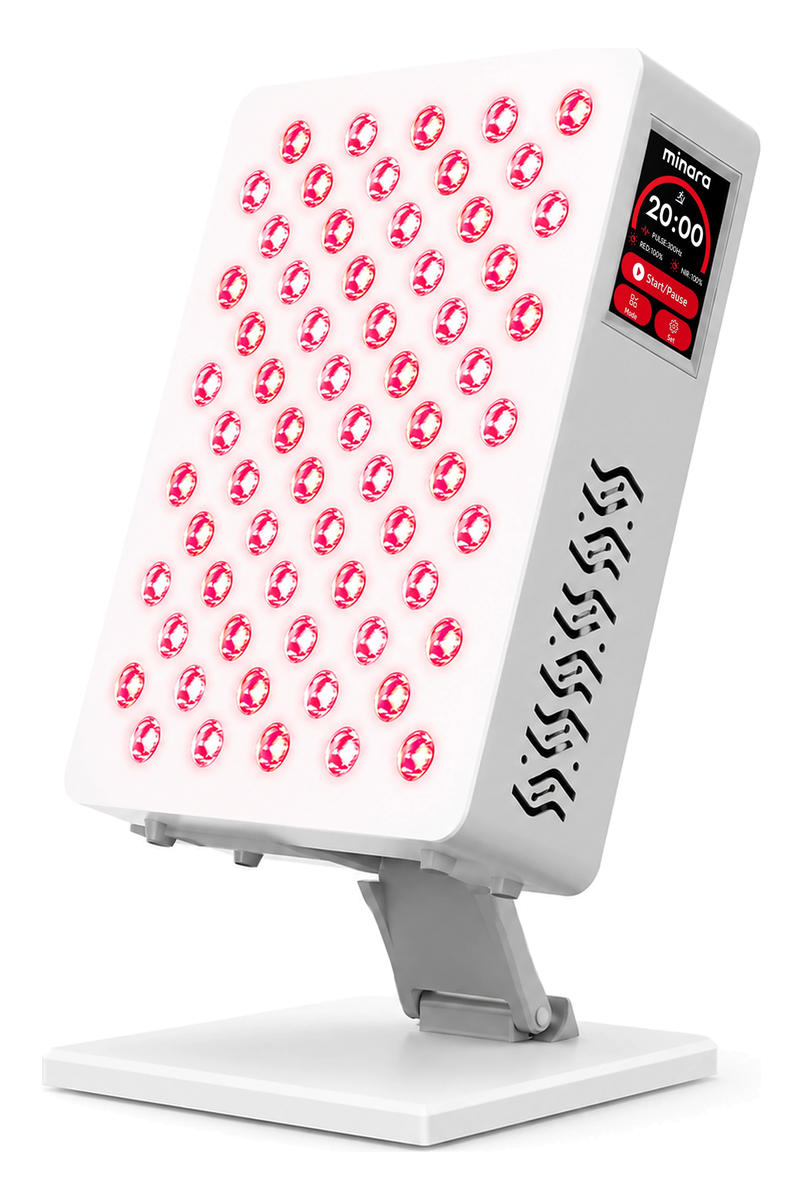

Panel with stand

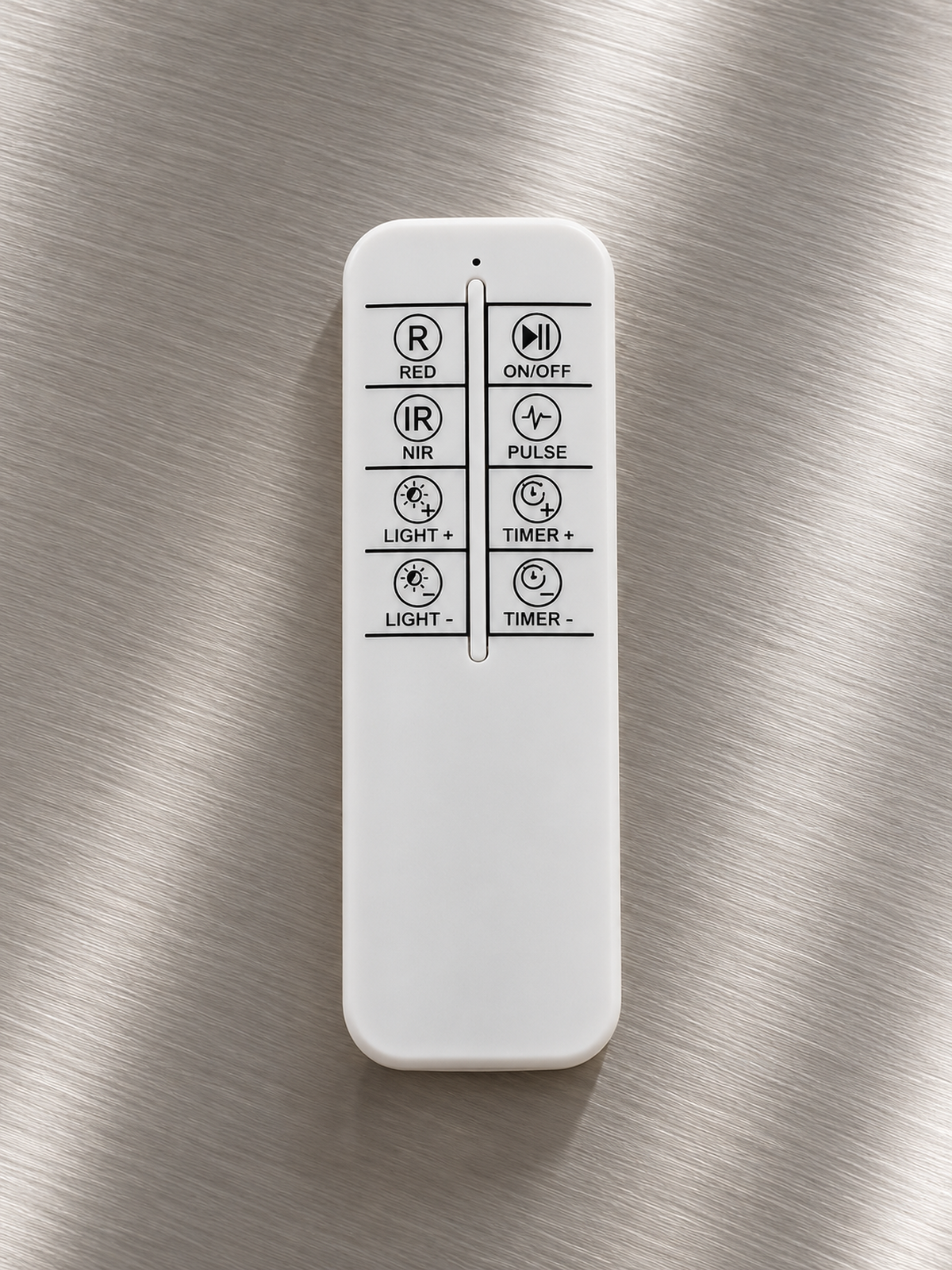

Remote control

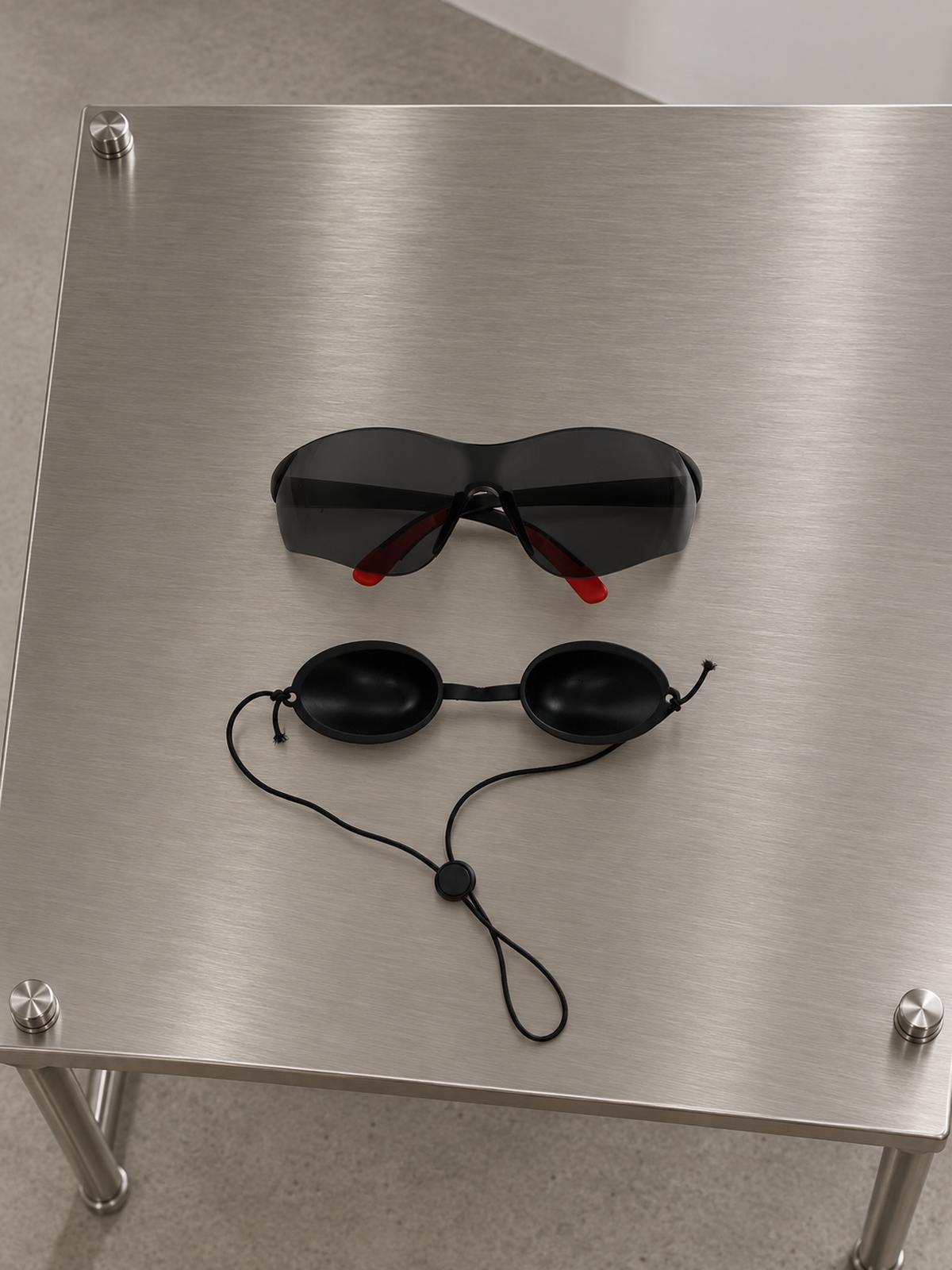

Eye protection glasses
Power cable
Door hook
Hanging sling
User manual
Twenty minutes,four days a week
Over a year that is a fraction of one percent of the panel's rated life. It is built for the long version of this, not the trial.
